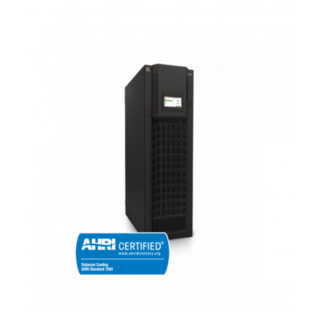

Vertiv Liebert CRV

The Liebert CRV is a precision data center cooling solution providing temperature and humidity control. It integrates within a row of data center racks, providing cooling close to the heat load. The Liebert CRV is often used with aisle containment and the advanced Liebert iCOM-S thermal supervisory control to independently manage airflow and temperature, greatly improving efficiency and supporting higher rack densities. Adjustable airflow baffles allow you to more precisely direct airflow within the row.

Liebert CRV uses environmentally-friendly R410A refrigerant. The system is available in two widths, 300mm and 600mm, and multiple capacities. It is available in systems for air, water/glycol, and chilled water cooling.

More information   Manufacturer's Website

Fill out my online form.
The easy to use Wufoo form builder helps you make forms easy, fast, and fun.
Technical Specifications
ModelsTotal Nominal Capacity kBtuh[kW] Net Sensible Capacity kBtuh [kw]*Nominal Airflow [CFM]Height (in)Width (in)Depth (in)Weight (lbs)
CRD100, Air-Cooled, 300mm, 10kW, 208-230V/1PH/60Hz 35.8 [10.5] 34.1 [10] 1960 78.7 11.8 44.6 509
CRD101, Air-Cooled, 10kW, 208-230V/3PH/60Hz

35.8 [10.5]

 34.1 [10] 1960 787 11.8 44.6 509
CR019RA, Air-Cooled, 300mm, 19kW 64.8 [19] 79.8 [23.4] 2250 78 3/4 12 46 1/4 507
CR019RW, Water/Glycol Cooled, 19kW 64.8 [19.0] 81.4 [23.9] 2250 78 3/4 12 46 1/4 545
CR032RC, Chilled Water, 32kW 109.1 [32.0] 97.7 [28.6] 2250 78 3/4 11 3/16 46 1/4 418
CR020RA, Air-Cooled, 20kW 68.2 [20] 82.9 [24.3] 2454 78 3/4 23 5/8 46 1/4 739
CR035RA, Air-Cooled, 35kW 119.4 [35.0] 129 [37.8] 3260 78 3/4 23 5/8 46 1/4 805
CR035RW, Water/Glycol Cooled, 35kW 119.4 [35.0] 128.9 [37.7] 2454 78 3/4 23 5/8 46 1/4 849
CR040RC, Chilled Water, 40kW 119.4 [40.0] 146.4 [42.9] 3325 78 3/4 23 5/8 46 1/4 728
