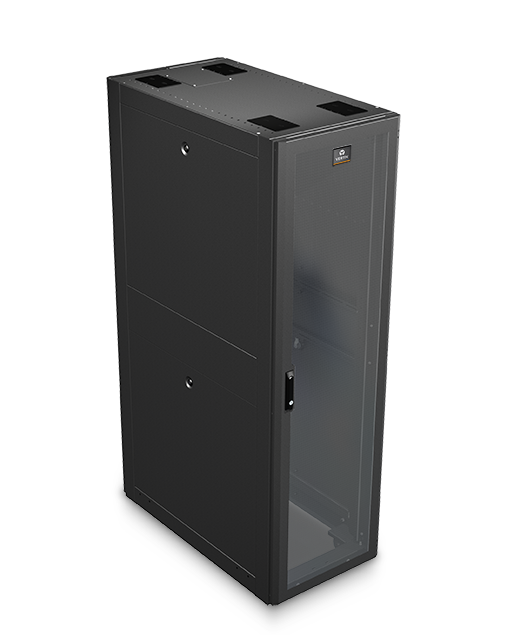

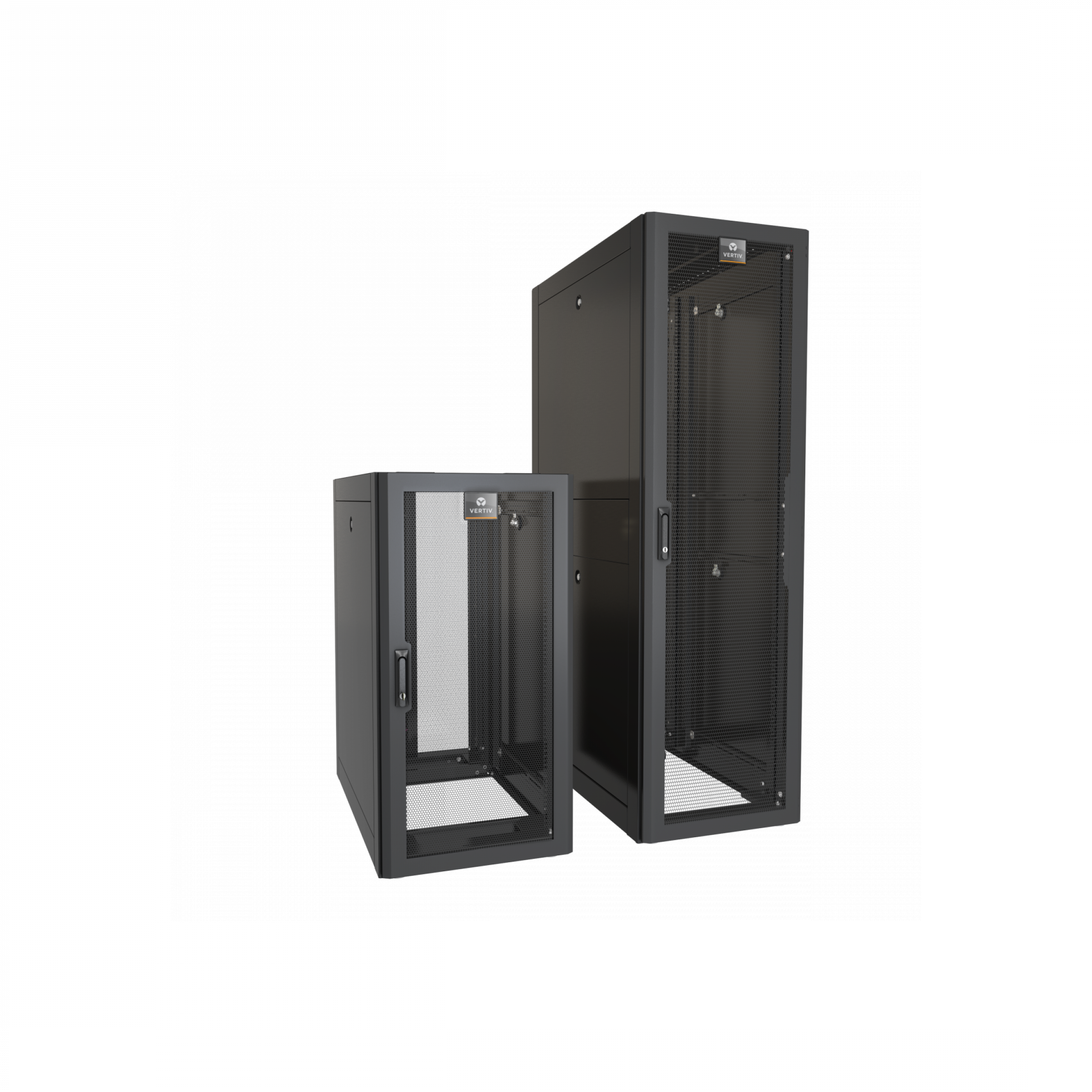

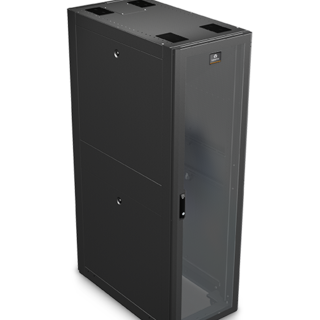

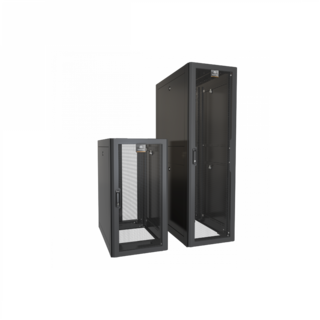

view product galleryThe DCE Rack System has been designed to meet the flexibility, ease of installation, and delivery requirements needed by today’s data centers. Choose from either the pre-configured rack selections or choose from our numerous factory installed accessories and configurations to customize your rack the way you need it, when you need it.
More information Manufacturer's Website
Fill out my online form.
The easy to use Wufoo form builder helps you make forms easy, fast, and fun.
| Models | U Height | Height | Width | Depth | Weight |
|---|---|---|---|---|---|

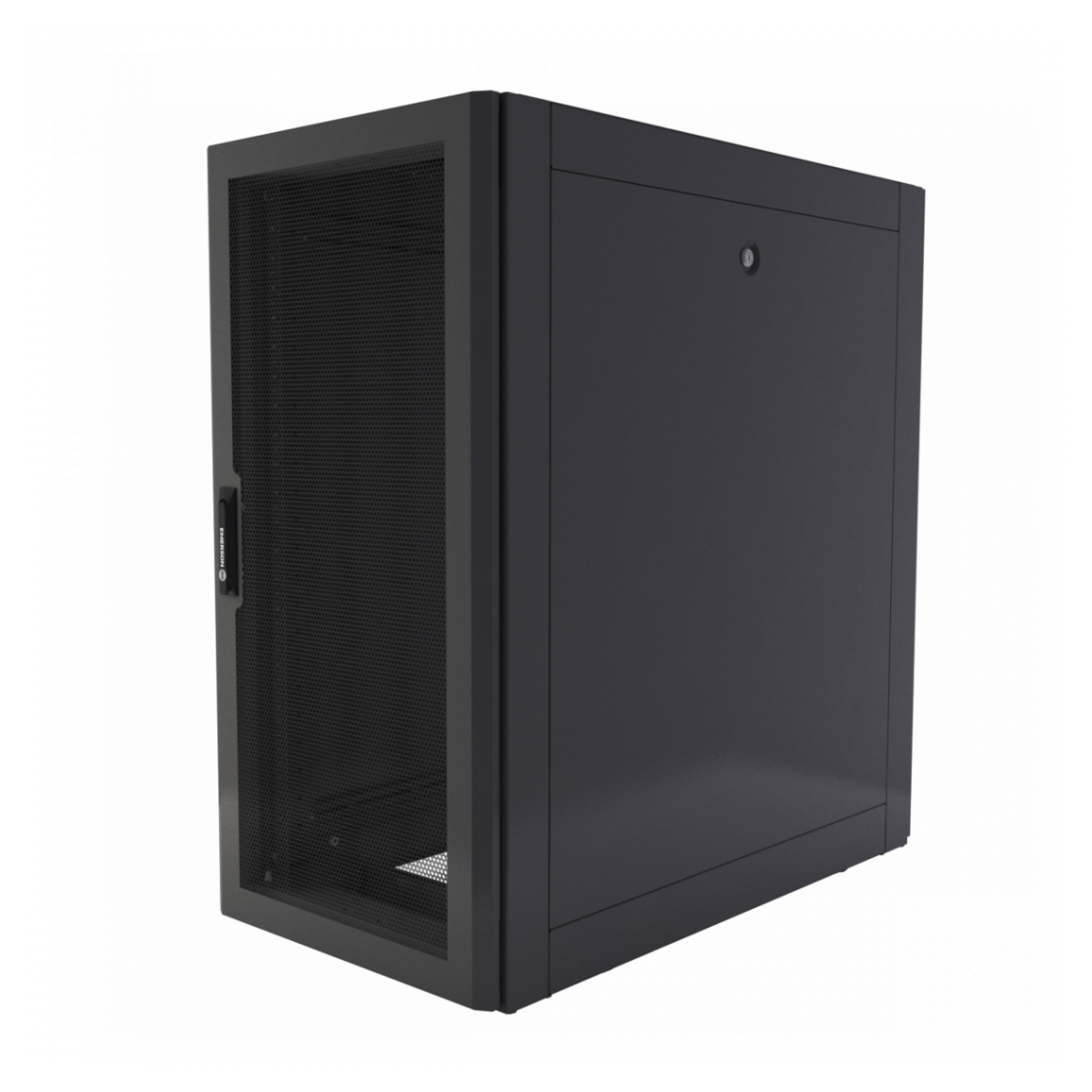

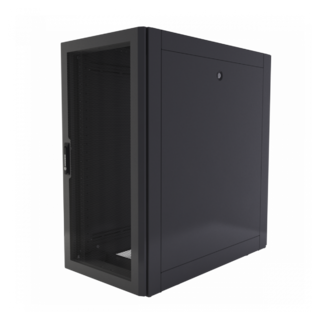

| E24611 | 24U | 47.2 in / 1200 mm | 23.6 in / 600 mm | 43.3 in / 1100 mm | 275 lbs / 125 kgs |
| E42611 | 42U | 78.1 in / 2000 mm | 23.6 in / 600 mm | 43.3 in / 1100 mm | 398 lbs / 181 kgs |
| E42612 | 42U | 78.1 in / 2000 mm | 23.6 in / 600 mm | 47.3 in / 1200 mm | 417 lbs / 189 kgs |
| E42711 | 42U | 78.1 in / 2000 mm | 27.55 in / 700 mm | 43.3 in / 1100 mm | 429 lbs / 194.59 kgs |
| E42712 | 42U | 78.74 in / 2000 mm | 27.55 in / 700 mm | 47.24 in / 1200 mm | 429 lbs / 194.59 kgs |
| E42811 | 42U | 78.74 in / 2000 mm | 31.49 in / 800 mm | 43.3 in / 1100 mm | 445 lbs / 201.849 kgs |
| E42812 | 42U | 78.74 in / 2000 mm | 31.49 in / 800 mm | 47.24 in / 1200 mm | 473 lbs / 214.549 kgs |
| E45611 | 45U | 84 in / 2136 mm | 23.6 in / 600 mm | 43.3 in / 1100 mm | 426 lbs / 193.230 kgs |
| E45612 | 45U | 84 in / 2136 mm | 23.6 in / 600 mm | 47.3 in / 1200 mm | 442 lbs / 200.488 kgs |
| E45711 | 45U | 84in / 2136mm | 27.55in / 700mm | 43.3in / 1100mm | 450 lbs / 204.117 kg |
| E45712 | 45U | 84 in / 2136 mm | 27.55 in / 700 mm | 47.24 in / 1200 mm | 466 lbs / 211.374 kgs |
| E45811 | 45U | 84 in / 2136 mm | 31.49 in / 800 mm | 43.3 in / 1100 mm | 478 lbs / 216.817 lbs |
| E45812 | 45U | 84 in / 2136 mm | 31.49 in / 800 mm | 47.3 in / 1200 mm | 496 lbs / 224.98 kgs |
| E48611 | 48U | 89.35 in / 2269 mm | 23.6 in / 600 mm | 43.3 in / 1100 mm | 446 lbs / 202.30 kgs |
| E48612 | 48U | 89.35 in / 2269 mm | 23.6 in / 600 mm | 47.3 in / 1200 mm | 462 lbs / 209.56 kgs |
| E48711 | 48U | 89.35 in / 2269 mm | 27.55 in / 700 mm | 43.3 in / 1100 mm | 471 lbs / 213.64 kgs |
| E48712 | 48U | 89.35 in / 2269 mm | 27.55 in / 700 mm | 47.24 in / 1200 mm | 503 lbs / 228.16 kgs |
| E48811 | 48U | 89.35 in / 2269 mm | 31.49 in / 800 mm | 43.3 in / 1100 mm | 501 lbs / 227.25 kgs |
| E48812 | 48U | 89.35 in / 2269 mm | 31.49 in / 800 mm | 47.3 in / 1200 mm | 534 lbs / 242.22 kgs |
