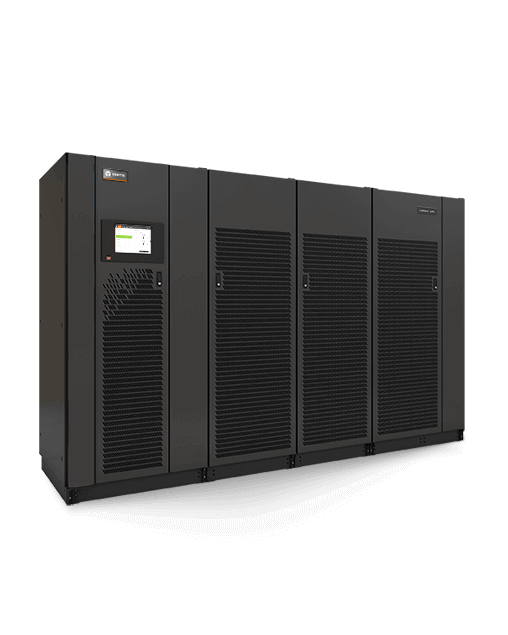

view product galleryThe Liebert EXL On-Line UPS is the right solution for a maximum efficiency data center – with a design that enables high operating efficiency, high capacity, and intelligent operation. Designed to enable lower installation costs and optimized operating costs, the Liebert® EXL™ UPS supports a low PUE and total cost of ownership. 800kVA/kW and 1200kVA/kW models available. Single Module and 1+N Distributed Bypass systems available. Add matching battery cabinets for a complete power solution. Output voltage 480 VAC 3-phase, 3 wire. Compatible with Lithium Ion battery systems.
| Model | Power Rating | Input Voltage | Output Voltage | Width | Depth | Height | Weight |
|---|---|---|---|---|---|---|---|
| EXL 800kVA | 800kVA/kW |
VAC 480 3-phase, 3-wire |
VAC 480 3-phase, 3-wire |
125.2" | 33.5" | 76.8" | 5,735 lbs |
| EXL 1200kVA | 1200kVA/kW |
VAC 480 3-phase, 3-wire |
VAC 480 3-phase, 3-wire |
171.7" | 33.5" | 76.8" | 8,050 lbs |
