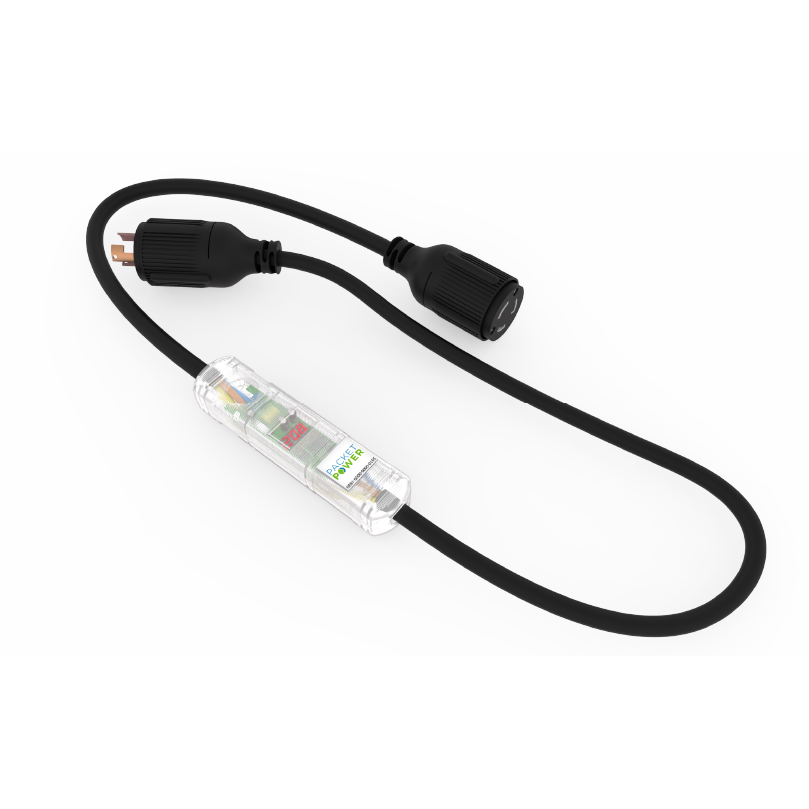

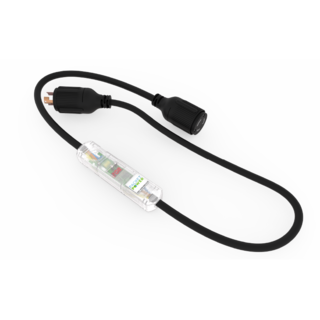

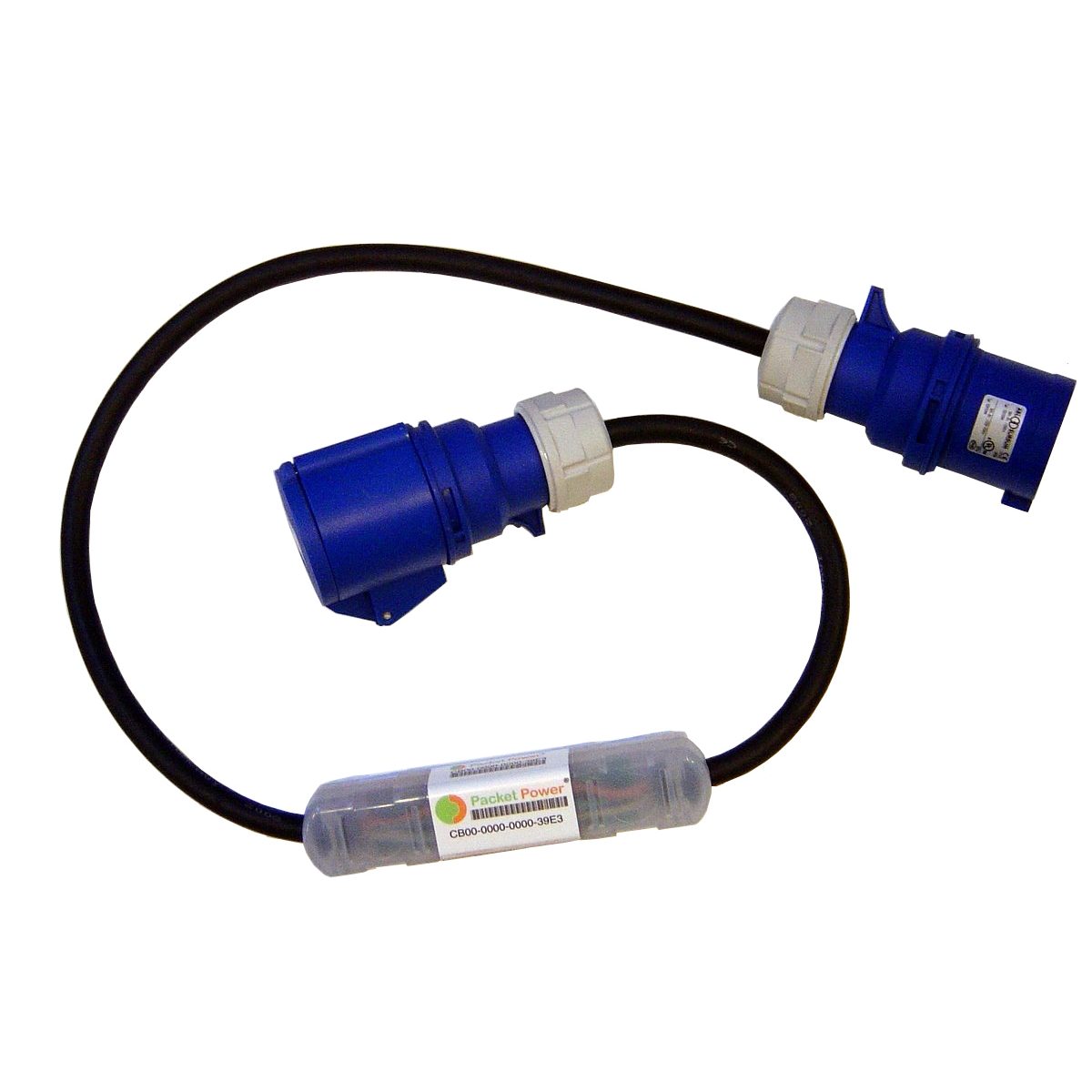

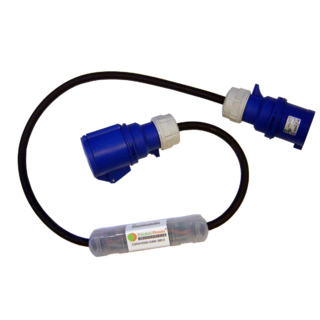

view product gallerySmart Power Cables revolutionize branch circuit monitoring. Other solutions can be costly to implement, complex to install and difficult to scale. Smart Power Cables avoid these issues by incorporating metering in a power cord and accessing the energy usage data via a wireless network. Since the cables can be used with any device with a plug, there’s no need to uninstall existing equipment, and you can have one monitoring system that works across all your devices.
More information Manufacturer's Website
Fill out my online form.
The easy to use Wufoo form builder helps you make forms easy, fast, and fun.
| Models | Measurement | Communications | Environmental & Mechanical |
|---|---|---|---|
| Smart Power Cables | Temperature: V, A, W, Wh, VA, Hz, PF | Operating Frequency: 860 to 930MHz and 2.4 GHz (frequencies vary by region) | Operating environment: 7° to 75°C (20° to 167°F); 5% to 95% non-condensing |
| Smart Power Cables | Accuracy: ± 1.0% | Wireless Network Protocol: Frequency hopping self-configuring load-balancing mesh | Water and dust resistance: Not rated |
| Smart Power Cables | Input Voltage: 100 - 480V AC | Data output (Gateway): SNMP and Modbus TCP/IP protocols | Operating humidity: 10% to 90% non-condensing |
| Smart Power Cables | Current range: Up to 100A | Firmware updates: Wireless | Water and dust resistance: NEMA 1 / IP20 (indoor use) |
| Smart Power Cables | Circuit types: Single- and three-phase | Typical transmission range: 10 to 30 meters indoors between any two devices in mesh network |
Module size and weight: S models under 16A 150 cm (60 in); 0.45kg (1 lb) S models 16A and above 120 cm (48 in); 0.75 - 1.0 kg (1.5 to 2 lbs) R models 120 cm (48 in); 1.5 - 3.0 kg (3.5 to 7 lbs) |
| Smart Power Cables | Antenna: Fully enclosed, fixed configuration | Power Usage: .6W | |
| Smart Power Cables | Cable to gateway ratio: Over 100 cables per gateway with unlimited gateways per site | Certifications: UL/ANSI 61010-1; CAN/CSA-C22.2 No. 61010-1 (ETL); FCC Class B; CE (IEC/EN 61010-1:2001, ETSI EN 300 220-2, ETSI EN 301 489-3, IEC/EN 61326-1); ICASA; AS/NZA 4268:2008 | |
| Smart Power Cables | Multi-site support: Yes | ||
| Smart Power Cables | Encryption: Optional | ||
| Smart Power Cables | Local display: Volts, Amps and Watts |
