view product galleryWhether you want to allocate energy costs, avoid unplanned outages or balance loads across phases, our wireless panel monitoring solutions give you the flexibility you need to measure what matters.

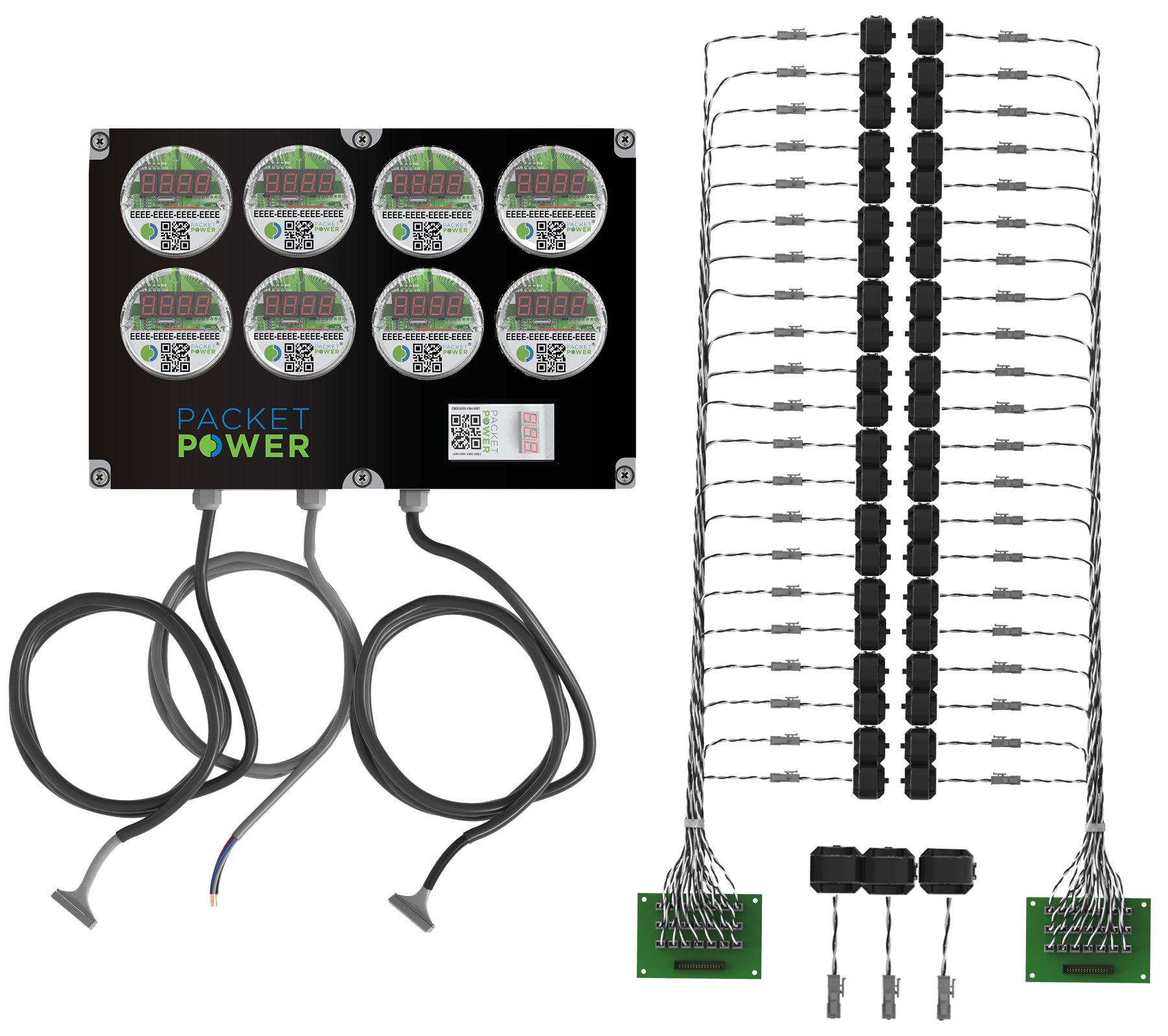

Packet Power's wireless branch circuit monitors install in a fraction of the time versus other systems by eliminating communication wiring, configuration and providing fully pre-configured wiring harnesses. You’ll be online receiving useful monitoring information immediately after installation.
More information Manufacturer's Website
Fill out my online form.
The easy to use Wufoo form builder helps you make forms easy, fast, and fun.
| Measurement | Communications | Environmental & Mechanical |
|---|---|---|
| Circuit Types: Circuits can be any combination of L-N, L-LO, or 3-phase | Operating frequency: 860 to 930 MHz and 2.4 GHz (frequencies vary by region) | Operating environment: -7° to 75°C (20° to 167°F); 5% to 95% non-condensing |
| Accuracy: +/-1.0% (CT dependent); +/-0.5% available | Wireless network protocol: Frequency hopping self-configuring load-balancing mesh | Water and dust resistance: BG14 / BG32: NEMA 1/IP20 (indoor use) BG08: NEMA 4X |
| Input Voltage: 100-480V AC | Data output (Gateway): SNMP and Modbus TCP/IP protocols with one IP address needed per Gateway; also visible through EMX cloud or local energy management system | Power Usage: 5-20W max; 120 to 277/480V AC |
| Configuration Parameters:Breaker number, breaker rating, circuit type, circuit name, circuit capacity, panelboard name | Firmware updates: Wireless | Certification: UL 61010-1, CSA C22.2 No. 61010-1, UL508A, FCC.CE (this is a partial list) |
| Typical transmission range: 10 to 30 meters indoors between any two devices in mesh network | ||
| Antenna: Fully enclosed, fixed configuration | ||
| Encryption: 128-bit | ||
| Local Display: LED displays on BG08 and BG14 |
